You use an overrunning clutch bearing when you need a part that lets a shaft spin one way but stops it from spinning the other way. This special clutch helps machines work safely and run smoothly by controlling how things turn. Many businesses use overrunning clutch bearings for jobs like automatic transmissions and conveyor belts.

• The worldwide market for overrunning clutches was USD 26.33 million in 2024.

• Experts think the market will grow to USD 31.08 million by 2031 with a 2.4% yearly growth rate.

Key Takeaways

• Overrunning clutch bearings let a shaft turn one way. They stop it from moving backward. This helps machines work safely and smoothly.

• The RIZ...ELG2 model from Suma Precision Machinery works well. It has an elastic coupling. This part takes in shocks and helps if things are not lined up right.

• You should take care of the clutch often. Keep it clean and oiled. This makes the overrunning clutch last longer. It also stops expensive fixes.

• Picking the right overrunning clutch is important. You need to think about torque, speed, and where it will be used. This helps it work its best.

• Many industries use overrunning clutches. These include cars, planes, and big machines. They help these machines work better and safer in many ways.

Overrunning Clutch Bearing Basics

What Is an Overrunning Clutch Bearing

Machines use an overrunning clutch bearing to control how things spin. This clutch lets a shaft turn one way without stopping. If the shaft tries to turn the other way, it locks up. It works like a one-way door for movement. The RIZ...ELG2 from Suma Precision Machinery is a good example. This model uses a centrifugal lift-off sprag type. It works best when the inside spins faster than the outside. It gives you a strong and efficient part for machines that need high overrunning speeds and low drive speeds.

Suma Precision Machinery is a well-known brand for clutch and bearing parts. The company started in 2005 and is known for making good products. Many people like Suma because their parts work well and last a long time. You can trust their overrunning clutch bearings for simple and hard jobs.

Key Features and Types

Overrunning clutch bearings have many important features. The RIZ...ELG2 model has an elastic coupling. This part helps stop shaking and lets parts move a little out of line. It keeps your machine safe and helps it last longer. The elastic coupling uses a rubber-fabric piece. This design helps stop shocks and keeps parts from wearing out fast. You do not need to fix it often.

Here is a table that shows how elastic couplings help machines in tough places:

There are different types of overrunning clutch designs. Each type works in its own way and is best for certain jobs. The table below shows the main types:

The centrifugal lift-off sprag type, like the RIZ...ELG2, is great for tough jobs. It can handle high torque and locks tightly when the direction changes. This makes it good for cars and big machines.

New technology makes clutch bearings even better. Makers use strong materials and special coatings to help parts last longer. High-precision tools help lower friction and carry more weight. Some factories use smart systems to check parts and tell you when to fix them. These upgrades help your machines work better and save money.

Tip: When you pick an overrunning clutch bearing, look for features like vibration damping, high torque capacity, and easy installation. These features help your equipment work well and last longer.

You can count on Suma Precision Machinery for new solutions. Their RIZ...ELG2 model uses the latest one-way sprag clutch technology. It is a smart choice for many jobs.

How an Overrunning Clutch Works

One-Way Rotation Mechanism

You see the magic of an overrunning clutch when you watch how it controls movement. The clutch lets a shaft spin in one direction and stops it from spinning the other way. This action keeps machines safe and working smoothly. The one-way sprag clutch is a popular type. It uses small metal pieces called sprags. These sprags grip tightly when you apply force in the driving direction. If you try to turn the shaft the other way, the sprags let go and the clutch disengages.

Here is how the sprag-type overrunning clutch works under different loads:

• The sprags transfer torque in one direction only.

• When you increase the load, the sprags change shape a little. This helps them grip better.

• The more torque you apply, the tighter the sprags hold until everything balances out.

• The clutch keeps working even if the load changes quickly.

This one-way action helps your machine avoid damage. You get smooth starts and stops. The clutch also protects other parts from sudden shocks.

Internal Components

Inside every overrunning clutch bearing, you find several important parts. The sprags are the heart of the clutch. They look like tiny metal bars shaped to fit between two rings. The inner race is the ring that connects to the shaft. The outer race is the ring that holds everything together. When you turn the shaft in the driving direction, the sprags wedge between the inner and outer races. This creates a strong grip and lets the clutch transfer power. If the shaft spins the other way, the sprags slip out of place. The clutch then disengages and lets the shaft spin freely.

The engagement and disengagement of the clutch depend on direction and speed. When the driven part spins faster than the driving part, the clutch disengages. This allows free rotation and prevents back rotation. If the driving part spins faster, the clutch engages and locks the movement. For example, in a car, when the engine drives the rotor, the clutch grips the outer drum. This stops the engine from going faster than the transmission. If the engine fails, the clutch lets the transmission spin faster than the engine.

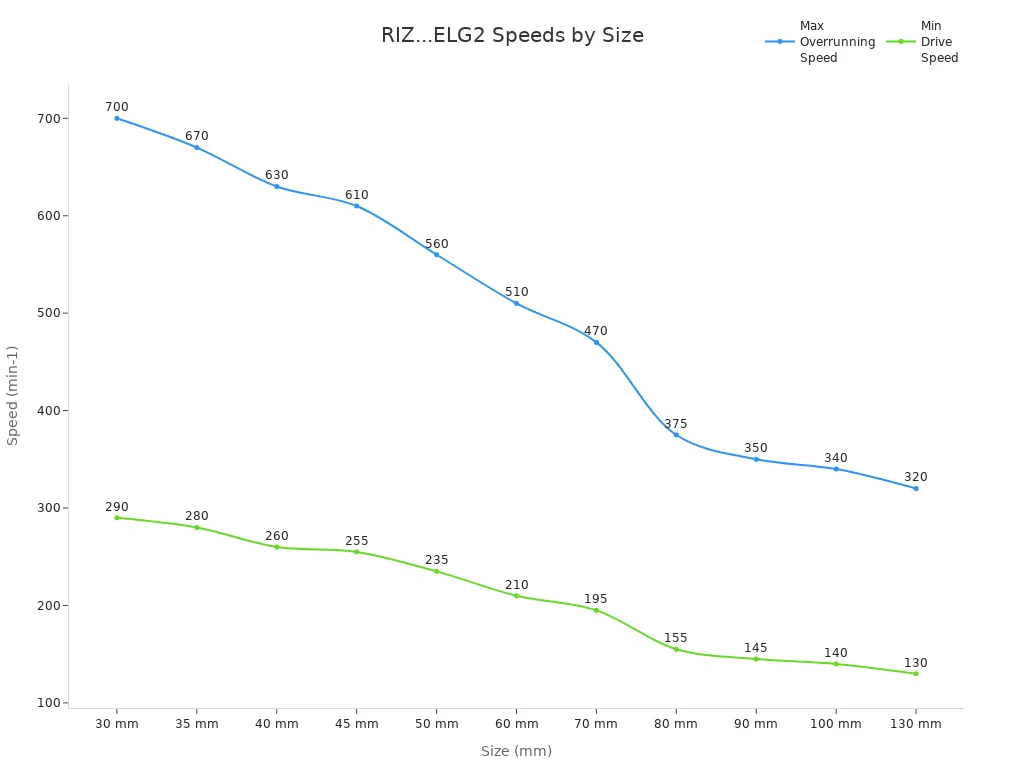

The RIZ...ELG2 model from Suma Precision Machinery stands out for its ability to handle high overrunning speeds and low drive speeds. You can use it in many machines that need reliable performance. The table below shows the maximum overrunning speeds and minimum drive speeds for different sizes of the RIZ...ELG2:

Note: The RIZ...ELG2’s wide range of sizes lets you pick the right clutch for your machine. You get strong performance at both high overrunning speeds and low drive speeds.

The one-way sprag clutch design gives you control and safety. You can trust it to keep your equipment running smoothly. The overrunning clutch bearing is a key part in many machines. It helps you get the most out of your system with less risk of damage.

Applications of Overrunning Clutch Bearings

Automotive and Automation Uses

Overrunning clutch bearings are used in cars and machines. In cars, the clutch helps gears change smoothly. It also works in torque converters. This lets the engine and transmission spin at different speeds. This keeps the engine safe and makes driving better. You see the clutch in crawl drives. These drives help machines move slowly, then go faster. The clutch lets the shaft spin freely when needed. This keeps the system safe.

In factories, the clutch helps save energy. It sends power one way and lets parts spin freely the other way. This lowers friction and saves energy. Makers use strong materials and coatings. These help the clutch last longer and work better. Factories need parts they can trust. The overrunning clutch helps machines run with less energy.

• The clutch makes machines work better and safer.

• Strong materials and coatings lower friction and save energy.

• Good clutch bearings help keep systems energy efficient.

Machinery and Industrial Systems

Many machines use overrunning clutch bearings. Conveyor belts use the clutch to control movement and stop jams. Big machines use the clutch for safe starts and stops. The RIZ...ELG2 model works in both flat and upright setups. You can use it in many machines. You do not have to worry about alignment.

The clutch helps stop shaking and wear. The elastic coupling in the RIZ...ELG2 absorbs shocks. It lets parts move a little out of line. This helps your machine last longer and need less fixing. You get a strong clutch that works for many jobs.

Tip: Pick a clutch that handles shaking and misalignment. This helps your system work well and saves time on repairs.

Benefits and Selection Tips

Performance Advantages

You get many benefits when you use an overrunning clutch in your machine. The clutch gives you reliable performance. It works well in tough jobs and keeps your system safe. You notice less vibration because the clutch uses elastic coupling. This helps your machine run smoothly and protects other parts from damage. The clutch also adapts to misalignment. You do not need to worry if the shaft moves a little out of place. The clutch keeps working and does not wear out fast.

You save time on maintenance with this clutch. You only need to check the lubrication film. This film stops wear between the sprags and the surfaces. If you keep the clutch clean and well-lubricated, it lasts longer. You avoid problems like metal-to-metal contact or dirt causing extra wear. The clutch works in many environments. It handles hot and cold weather. You can use it outside because it resists moisture. Regular checks help you keep the clutch working at its best.

Tip: Always keep your clutch clean and lubricated. This helps you avoid costly repairs and keeps your machine running.

Choosing the Right Overrunning Clutch Bearing

You need to pick the right clutch for your job. The RIZ...ELG2 model comes in many sizes. You can choose one that matches your torque and speed needs. Look at the type of motor you use. Electric motors need you to check the starting and normal torque. If you use an internal combustion engine, you should ask experts for advice. You also need to know the shaft diameter and the speed range.

Here is a table to help you choose the best clutch for high-torque jobs:

You should also think about where you use the clutch. If you work outside, pick a clutch that can handle temperature changes and moisture. The RIZ...ELG2 works well in both indoor and outdoor settings. You get strong performance and easy installation. You can trust this clutch to keep your transmission and other systems running smoothly.

You use overrunning clutch bearings to help control how things spin. These bearings also keep machines safe from damage. Many businesses need these bearings for their work. They help machines run safely and smoothly.

New models like the RIZ...ELG2 work even better.

• They let machines spin fast with slow drive speeds.

• The elastic coupling helps stop shaking and fixes misalignment.

• This design helps machines last longer and work better.

When picking a clutch bearing, check for good quality and the right features. Suma Precision Machinery has choices for special jobs. You can get small sizes, quick action, and strong bearings.

FAQ

What does an overrunning clutch bearing do?

An overrunning clutch bearing lets a shaft turn one way. It stops the shaft from turning the other way. This keeps your machine safe. It helps your machine work without problems.

Where can you install the RIZ...ELG2 clutch bearing?

You can put the RIZ...ELG2 clutch bearing sideways or straight up. This means you can use it in many machines. It works for lots of setups.

How does the elastic coupling help your machine?

The elastic coupling takes in shaking and lets parts move a bit. Your machine works better and parts last longer. The coupling lowers stress on your machine.

What maintenance does an overrunning clutch bearing need?

You need to keep the clutch bearing clean. You should check the oil or grease often. Regular checks stop damage and help your machine work well.
